Switch - PIR Sensor - 24V - 5 Min - 4.5A - TS5PIR/2

Labcraft PIR Sensor Switch

24V - 5 Min - 4.5A Max

• Built in PIR sensor/switch
  The electronics used within this unit have been designed to detect the movement of body heat in order to activate the sensor.
• 5 minute timer
  Once the sensor has been triggered, this timer unit will automatically switch the connected lamps on for a period of 5 minutes (TS), before automatically switching off. If continuous movement is detected then the lights in the vehicle will remain on.
• Low power consumption
  The timer switch has been designed to use a minimal amount of power to prevent any unnecessary load on the battery, and to work effectively in conjunction with Labcraft lights. A series of lights with a maximum low current of 4.5A can be used in conjunction with each timer switch.
• Slim, low profile design

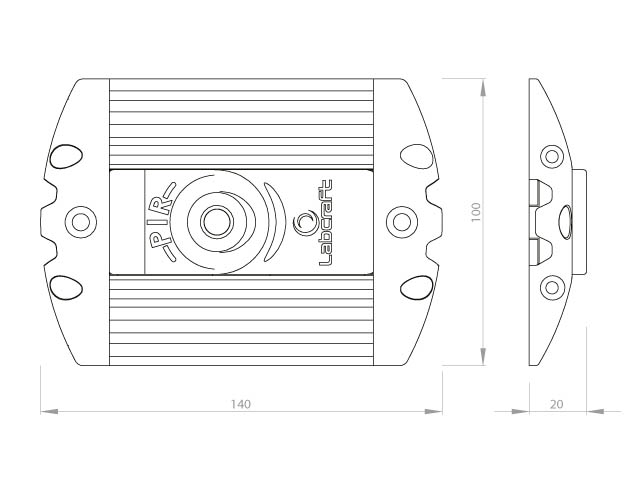

  These surface mounted units are only 19mm (TSTI) and 20mm (TS) in depth therefore keeping obstruction and damage to the minimum.

Tech Info :

• Voltage :  20-28V DC
• Max Load Currant :  4.5A
• Weight : 0.09
• Temp Range : -30 to +40 ^oC
• Switch on Time :  5 minute
• Angle of Sensor : 88^o
• Off-load Current : 40 mA
• IP Rating : IP50
