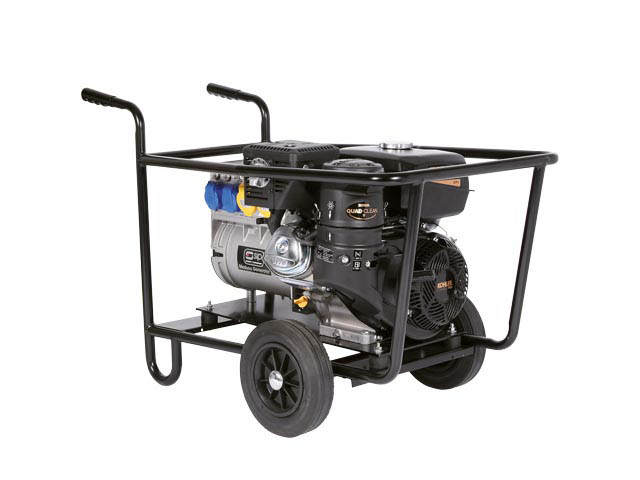

Welder - Alleycat P200W-AC (Kohler) Welder Generator

ELECTRODE SIZE: 1.6 to 5mm
WELD CURRENT OUTPUT RANGE - DC: 60 to 200amp
OUTPUT@ 60% DUTY CYCLE: 180amp
OPEN CIRCUIT VOLTAGE: 75v,
INSULATION: Class H
PROTECTION: IP21
APPROX WELD THICKNESS RANGE: (mild steel) 1.5 to 8mm
GENERATOR SUPPLY - 50Hz AC: 230v / 115v
GENERATOR RATED OUTPUT: 4KVA
ENGINE: KOHLER 14hp OHV
FUEL/FUEL TANK CAPACITY: Unleaded / 7.3 litres
FULL LOAD APPROX RUNNING TIME:2.8hrs
WEIGHT: 91kg
PACKAGED DIMENSIONS:(HxWxL): 670 x 580 x 1060
OPTIONAL ACCESSORY KIT: 05101
This unit is designed for Export only
