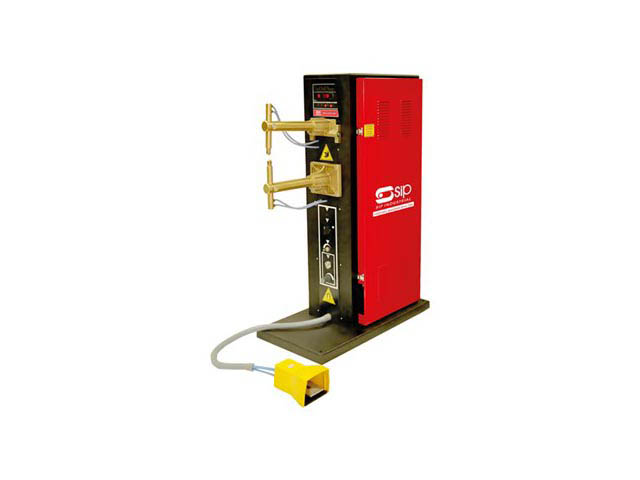

Welder - Spot - SIP CSW25P Pneumatic (25KVA)

A new addition to our range is the 25KVA Pneumatic Column Spot Welder. It is operated through foot pedal control and the electronic controller, which features a 5 step welding sequence and an easy interface.

• 1.4v no-load voltage
• 400v (50amp), 1 phase supply
• 4.8 bar compressed air pressure
• 50KVA max. weld power (25KVA @ 25%)
• 204kgF @ 340.0mm max. electrode force
• 140kgF @ 450.0mm max. electrode force
• 200.0mm distance between the two arms
• 340.0mm to 480.0mm standard arm length
• 5+5.0mm (mild steel plate), 20+20.0m (bar)
• Adjustable tip pressure and throat depth
• The unit is fitted water cooling hoses

Single or double pulses with increased control when welding oxidised, galvanised, stainless steel and coated steels.
