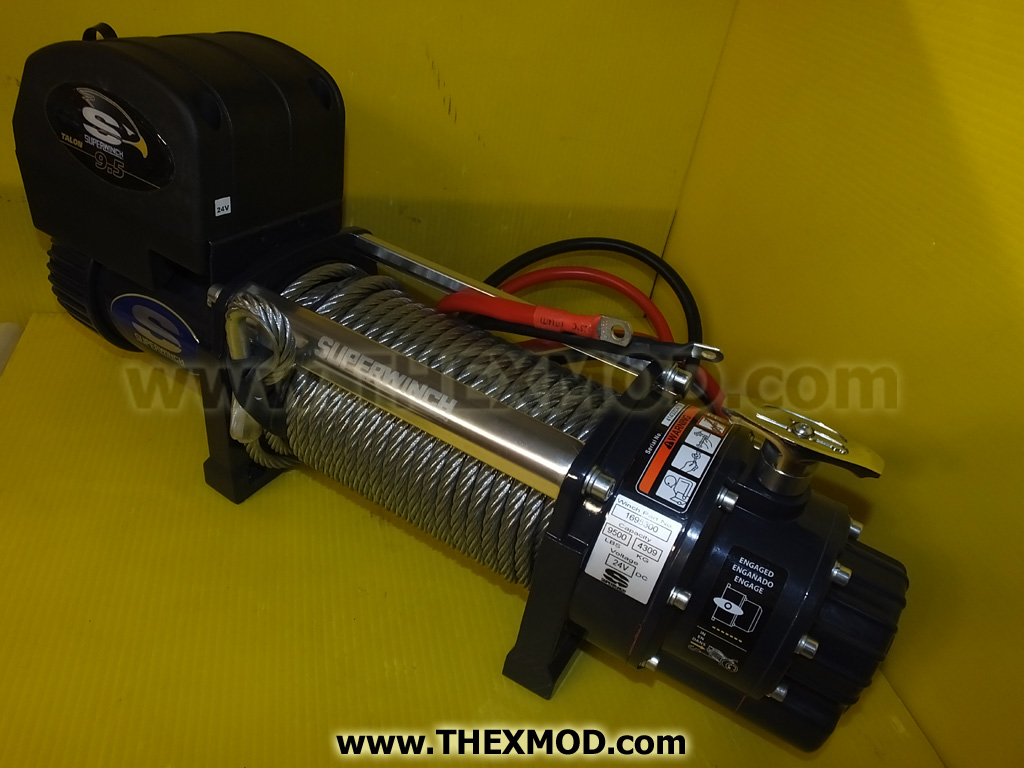

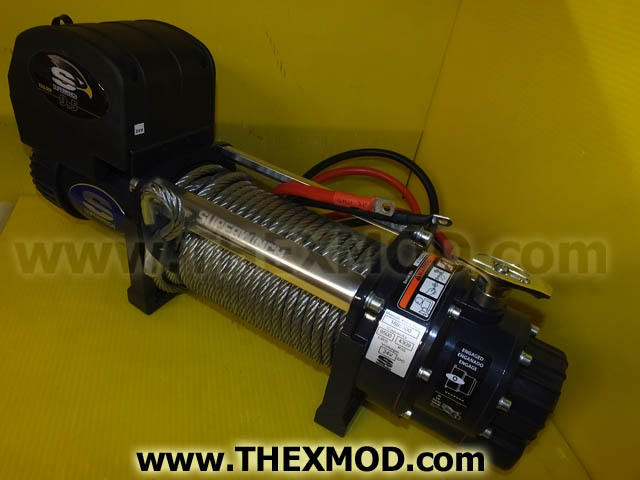

Winch - 24V - Superwinch Talon 9.5

Winch - 24V - Superwinch Talon 9.5


Standard Features:

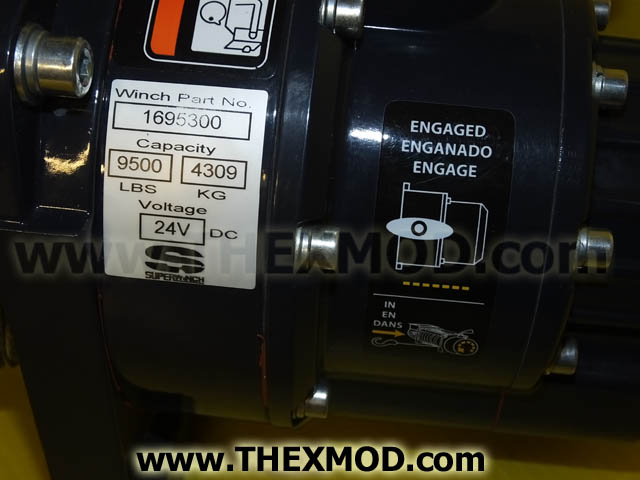

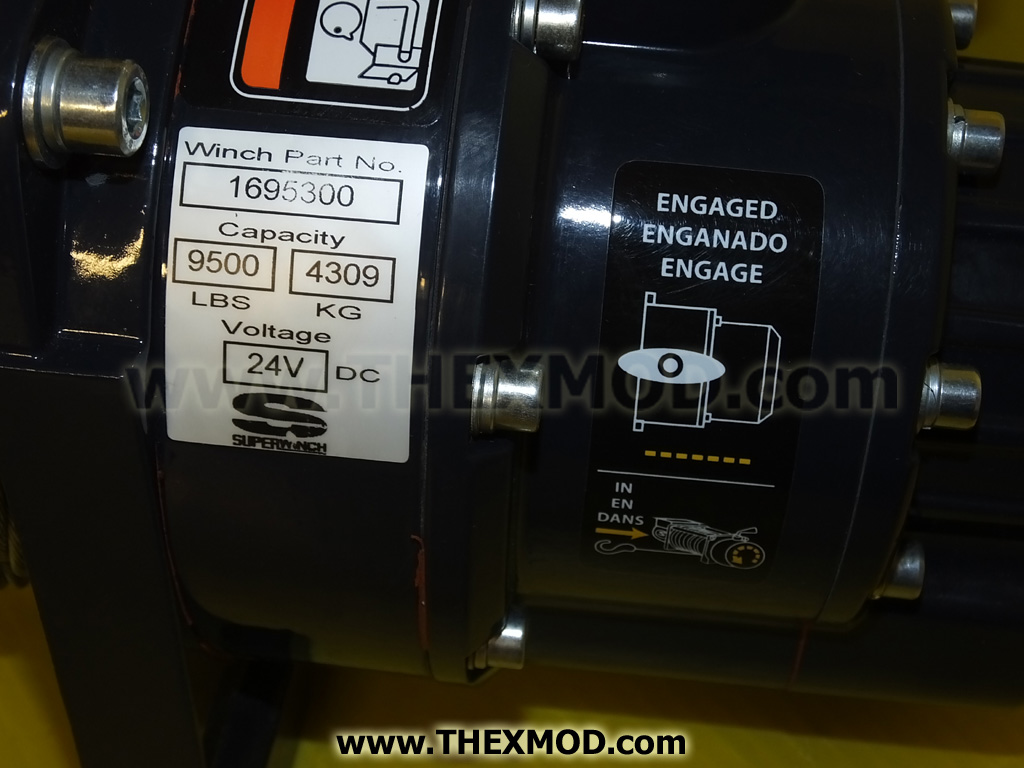

Line Capacity: 9,500lb (4,309kg)
Rope: 24.4m of 9.5mm Steel Cable with Clevis Hook
Motor: Reversible 3.8kW 24v Series Wound Motor - Powers In and Out

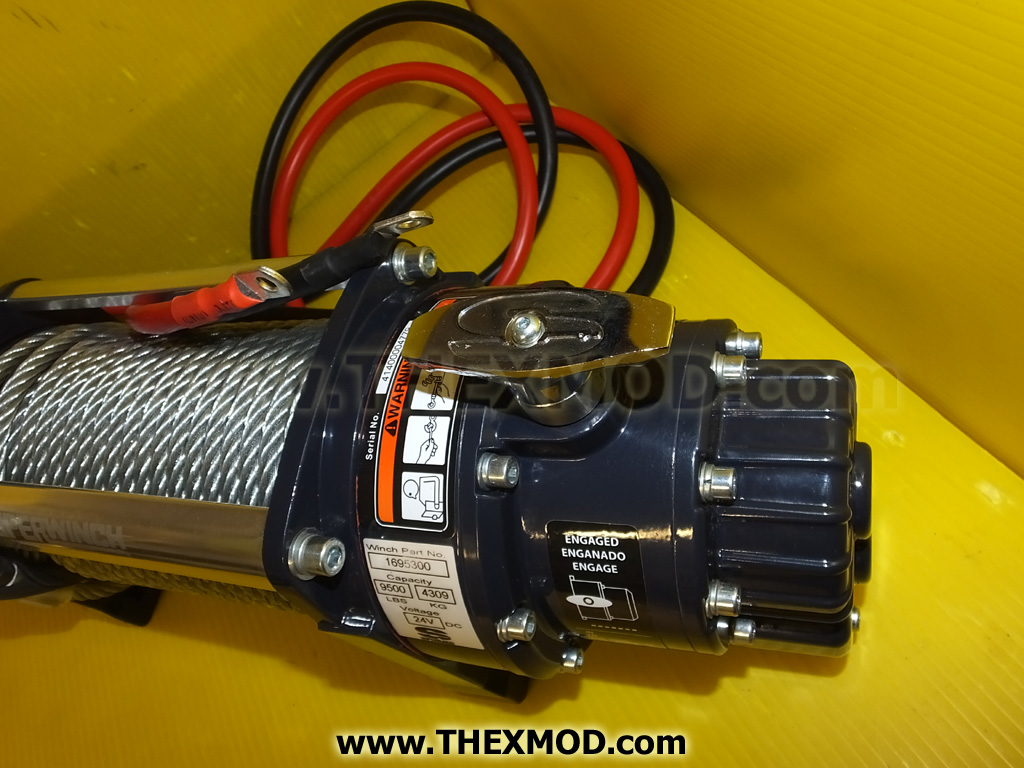

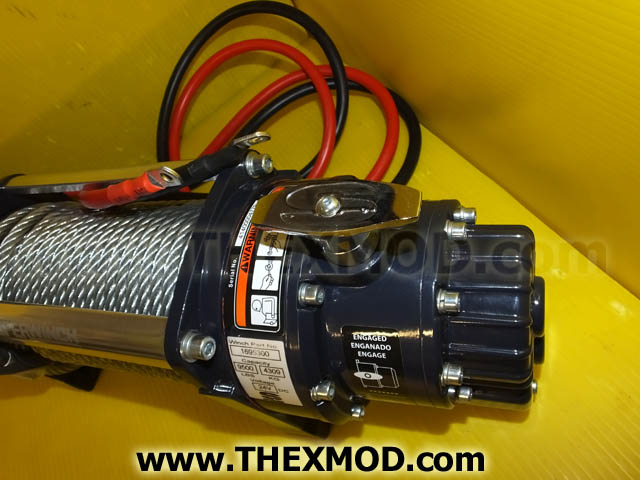

Gearbox: 148:1 with Freespooling Clutch - Allows cable to be unwound manually

Accessories:

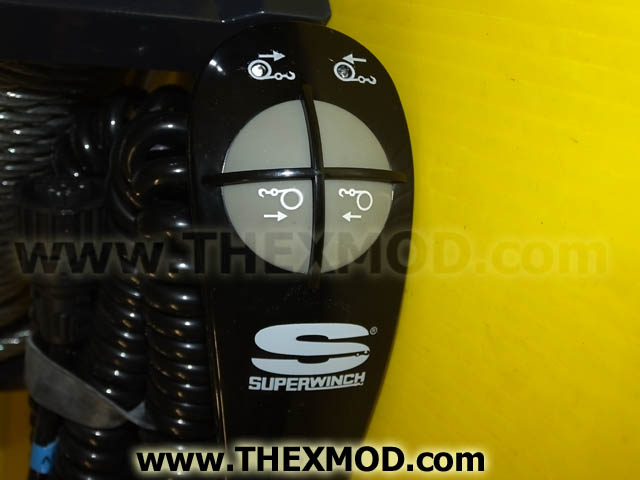

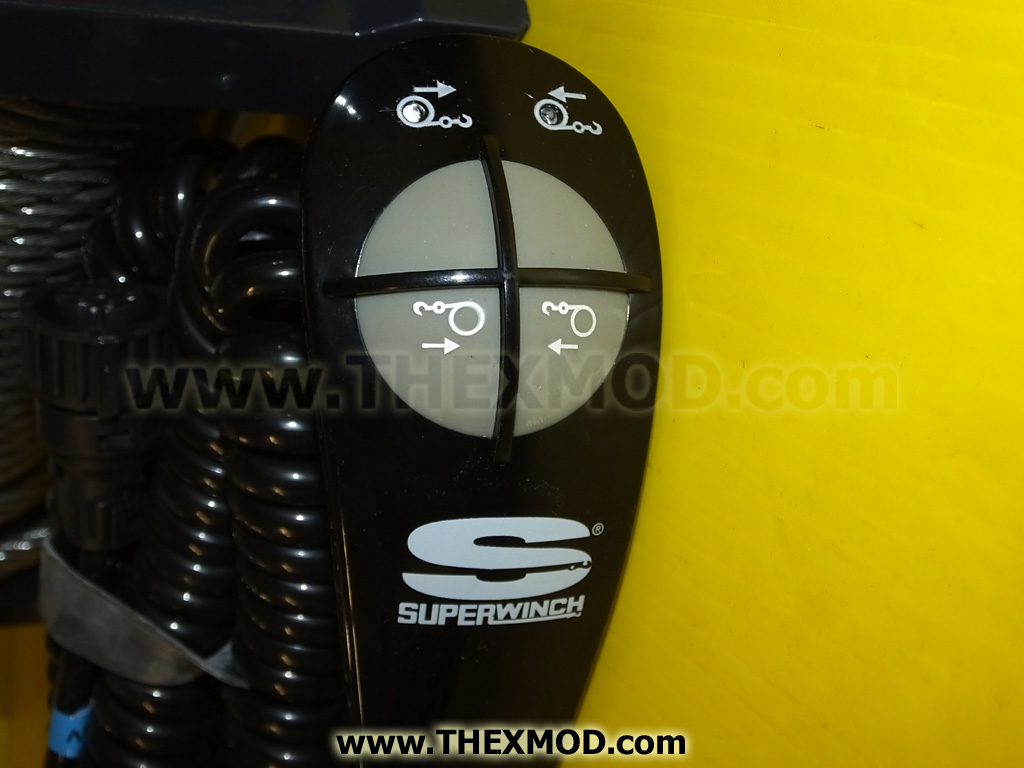

Wired Hand Control: 4.5m Sealed Ergonomic Hand Control with Coiled Cord
Wireless Control: Available as optional extra
Mounting Plate: Available as optional extra

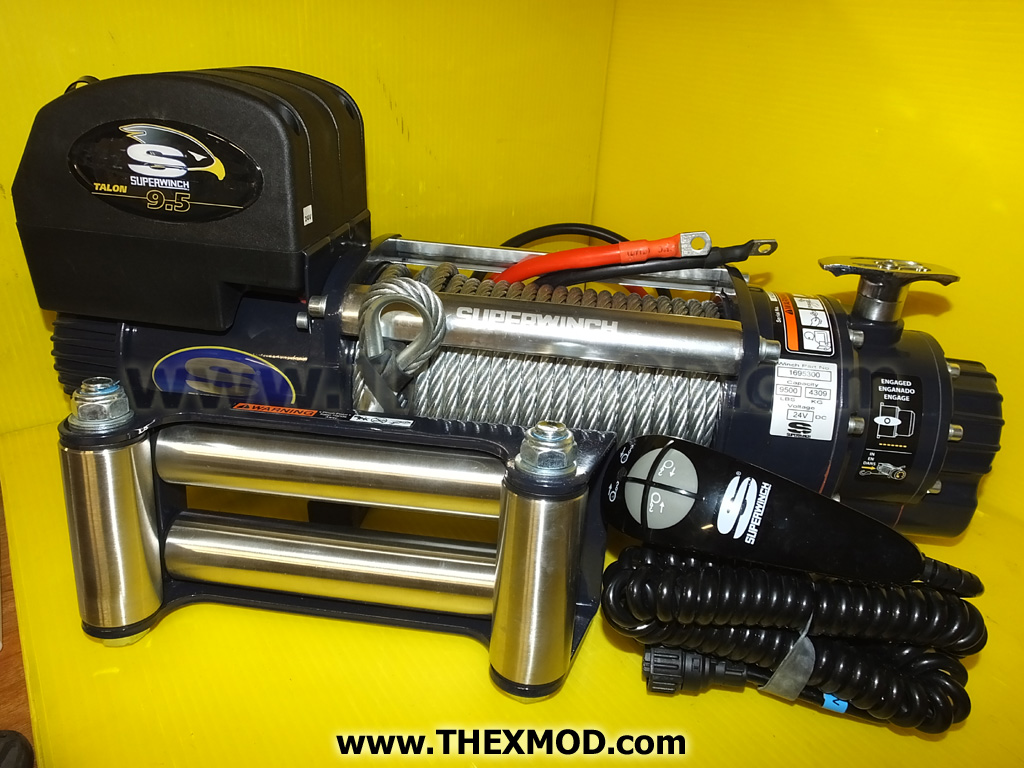

Roller Fairlead: Heavy Duty 4-Way Roller Fairlead with Stainless Steel Rollers
Mounting Bolts: Included for Standard installations


Other Information:

Dimensions: 615.2mm L x 157.5mm D x 278.15mm H
Mounting Bolt Pattern: 254mm x 114.3mm
Approx. Shipping Weight: 47kg
Line Pull - No Load: 18.9 m/min (75 Amps)
Line Pull - Full Load:  1.5 m/min (430 Amps)
