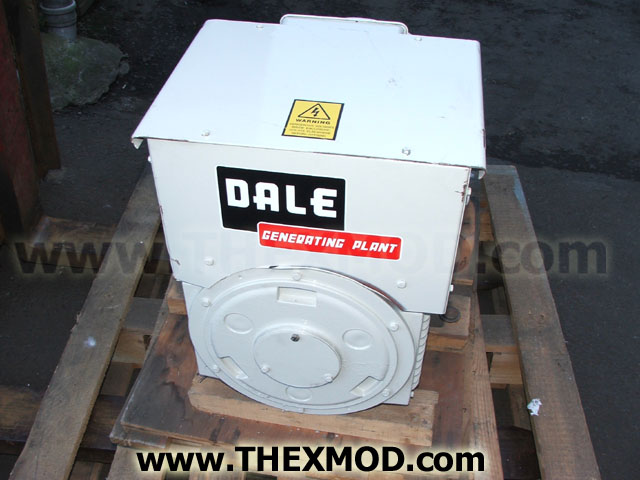

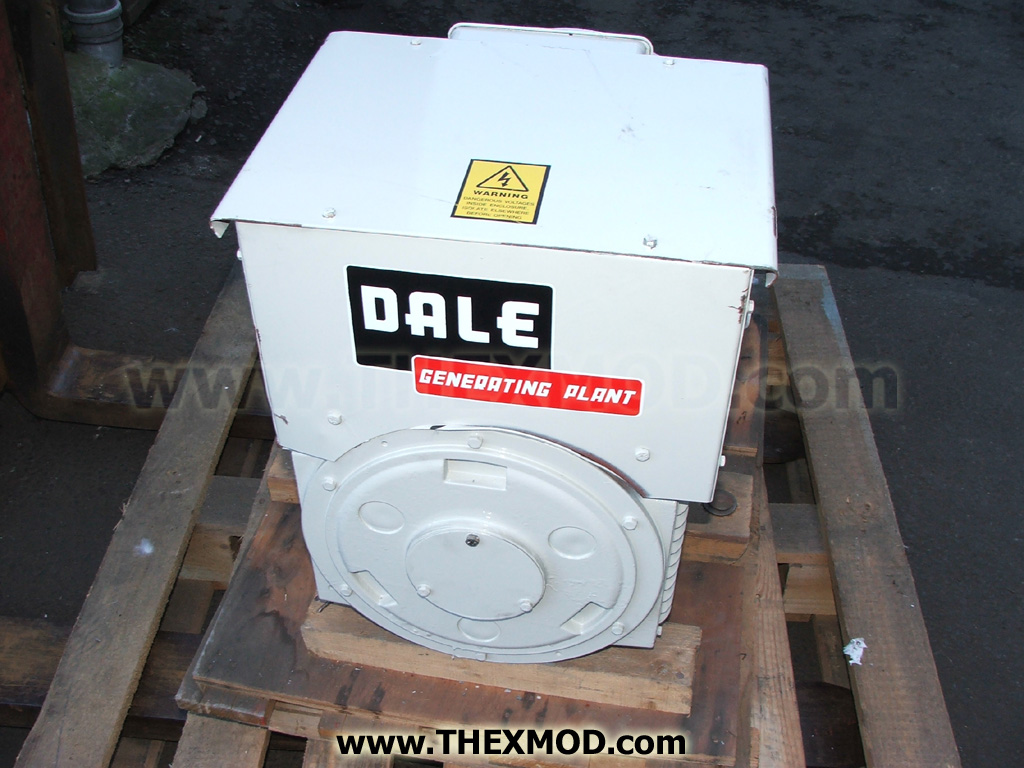

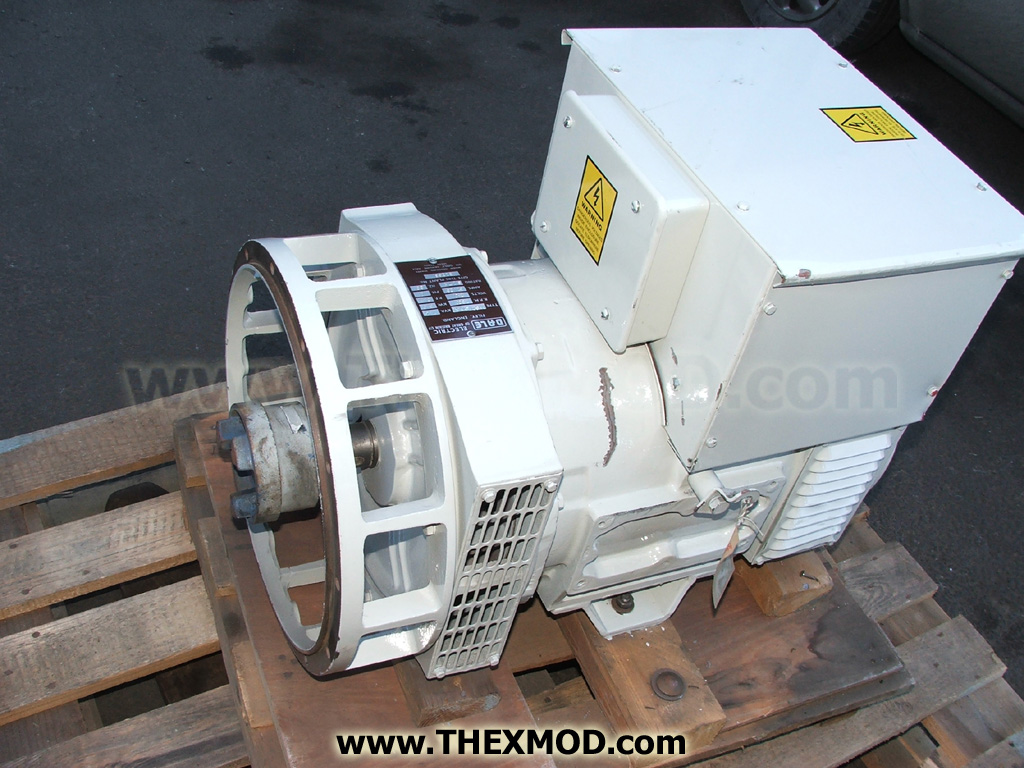

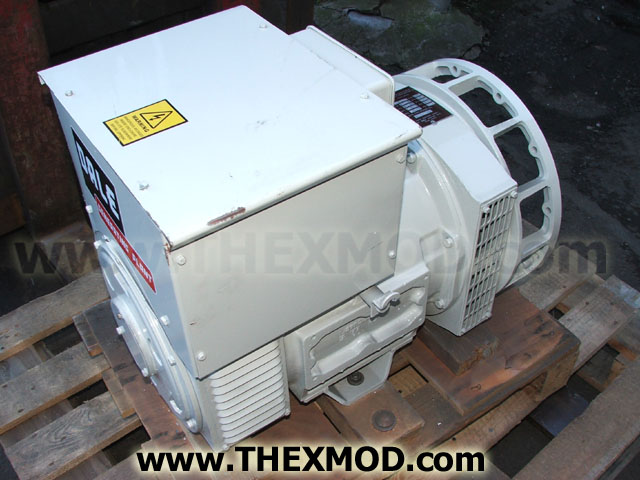

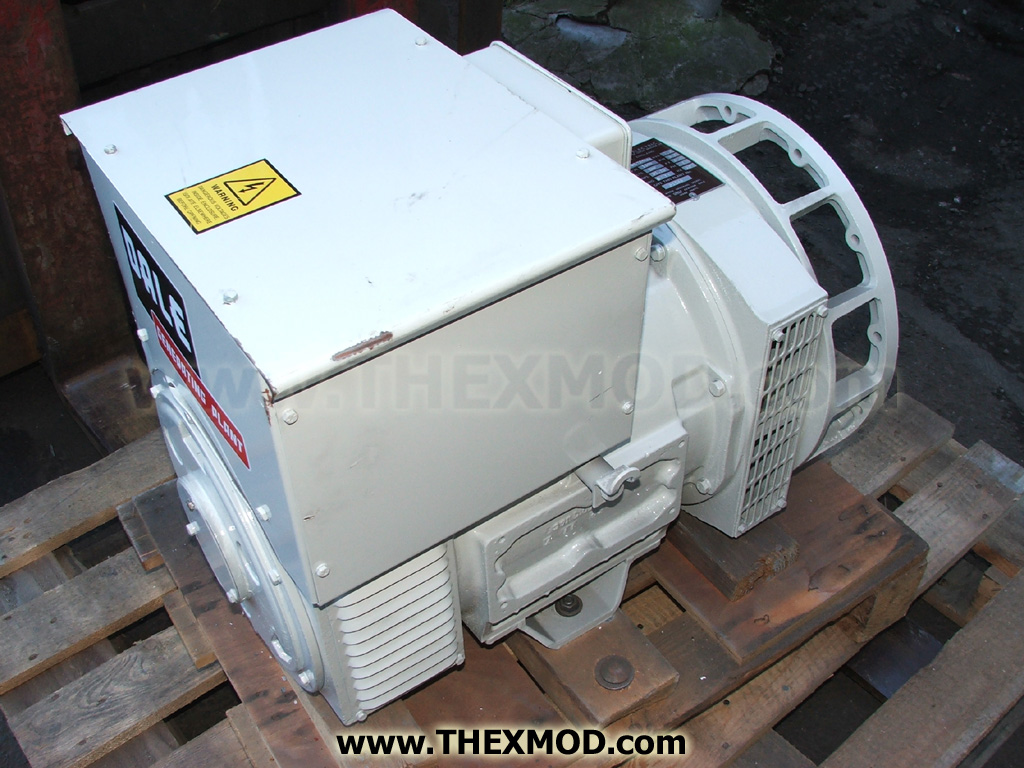

Generator Alternator - 22.5 KVA 415V 50 HZ
Generator Alternator - Crated
Samford Model : SC144E
22.5 KVA @ 415V - 50 HZ
7.5 KVA (6 KW) @ 240V 50 HZ
( Using One Phase )
1500 RMP
500mm H * 460mm W * 660mm L

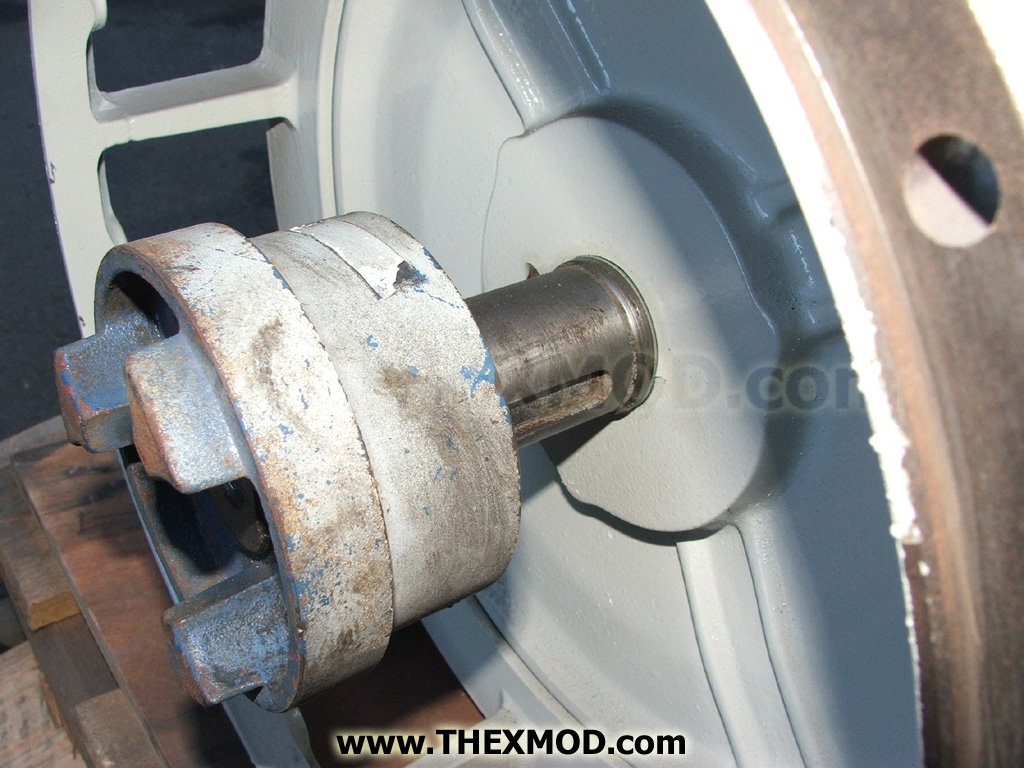

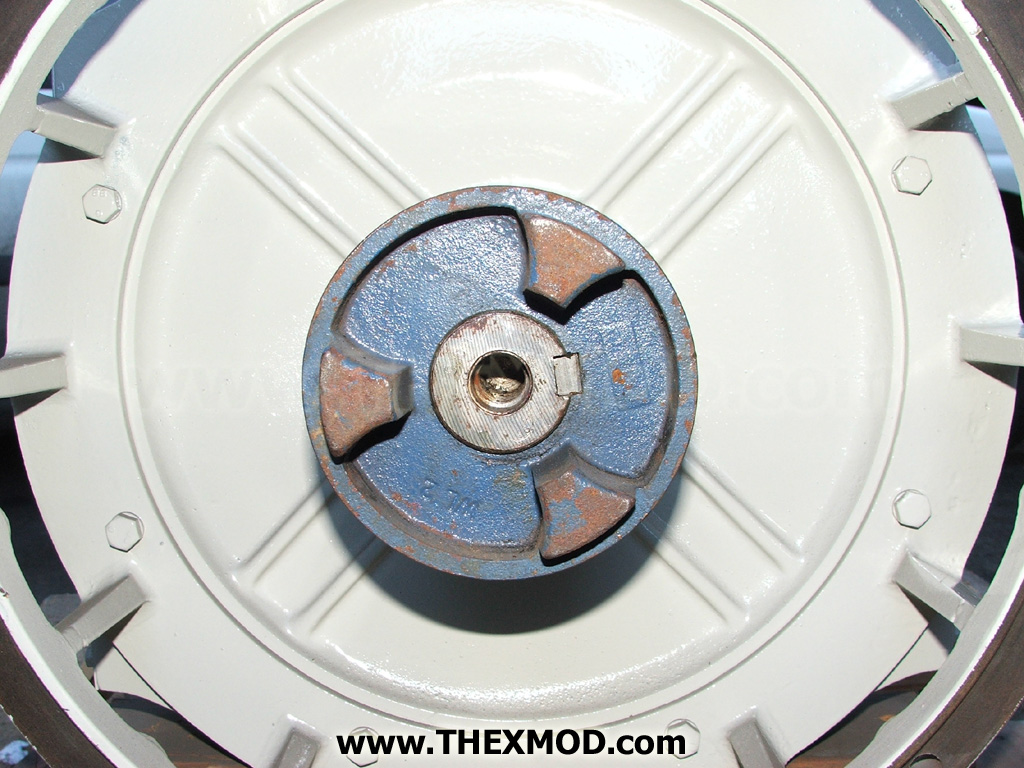

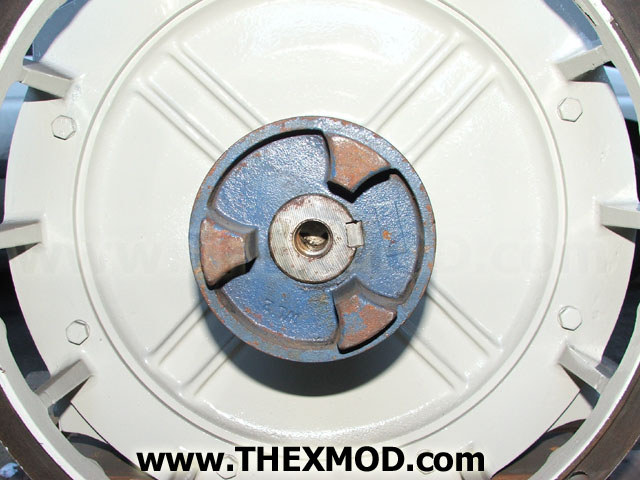

Shaft 42mm
Key width in shaft - 12mm
Key depth in shaft 4mm
Key height that is in unit at moment: 7.5mm
380 MM between mounting holes.
This unit will not have a coupling just a shaft
| xmod Ref : | 792 |
|---|---|
| NSN | 6115992150020 ( 6115-99-215-0020 ) |
| DMC | X2 General Purpose Generating PlantSee all parts listed under this code |
| NSN Group | Electric Wire, Power & Distribution EquipmentSee the stock classes in this group |
| NSN Category | Generators & Generator Sets, ElectricalSee all parts in this category |
| Oem Ref No. | Stamford - SC144E |
| Stock Type | Ex MoD Surplus |
